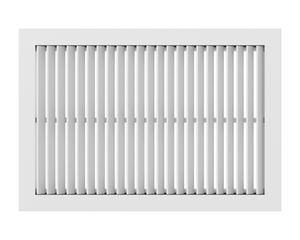

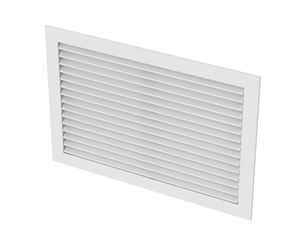

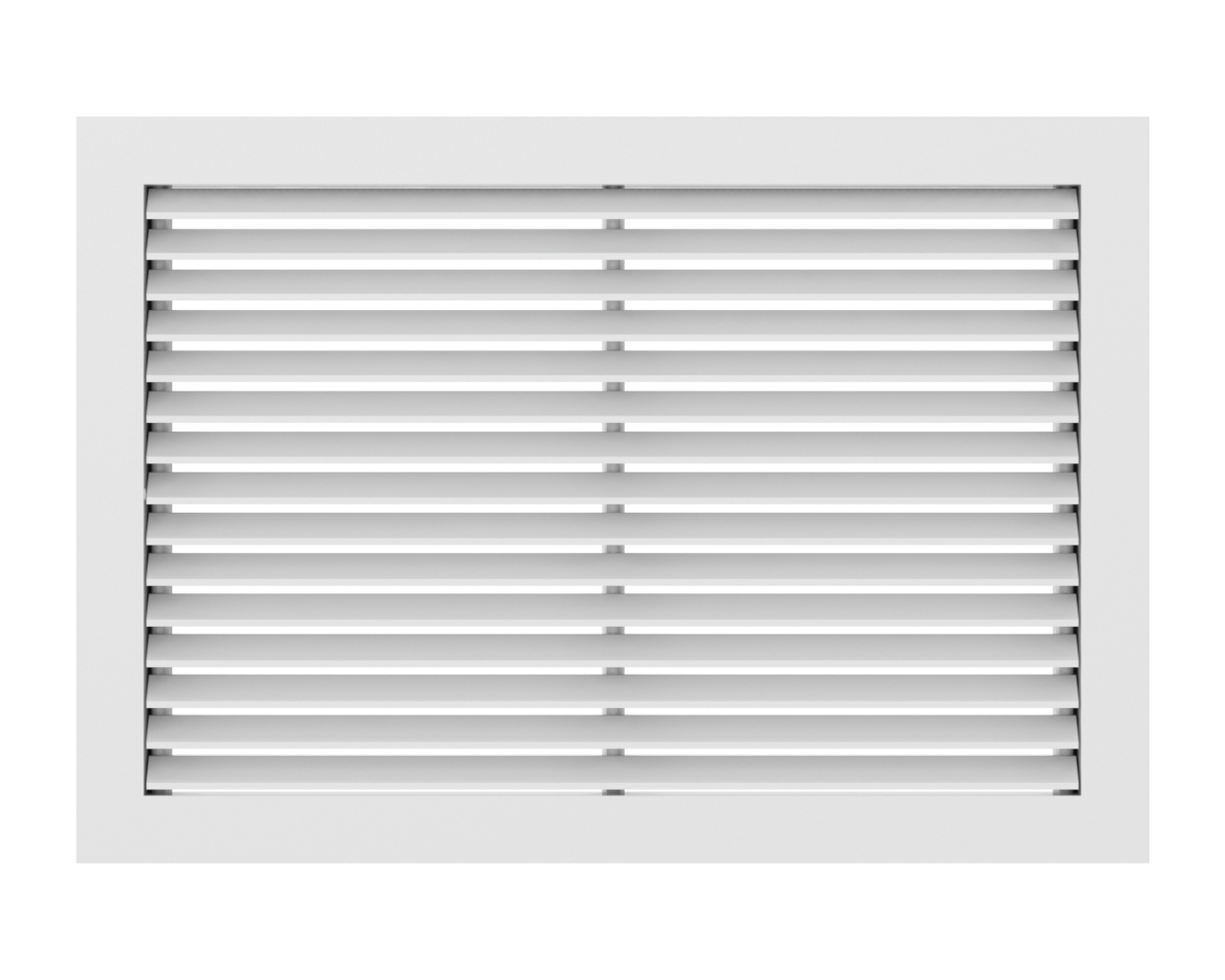

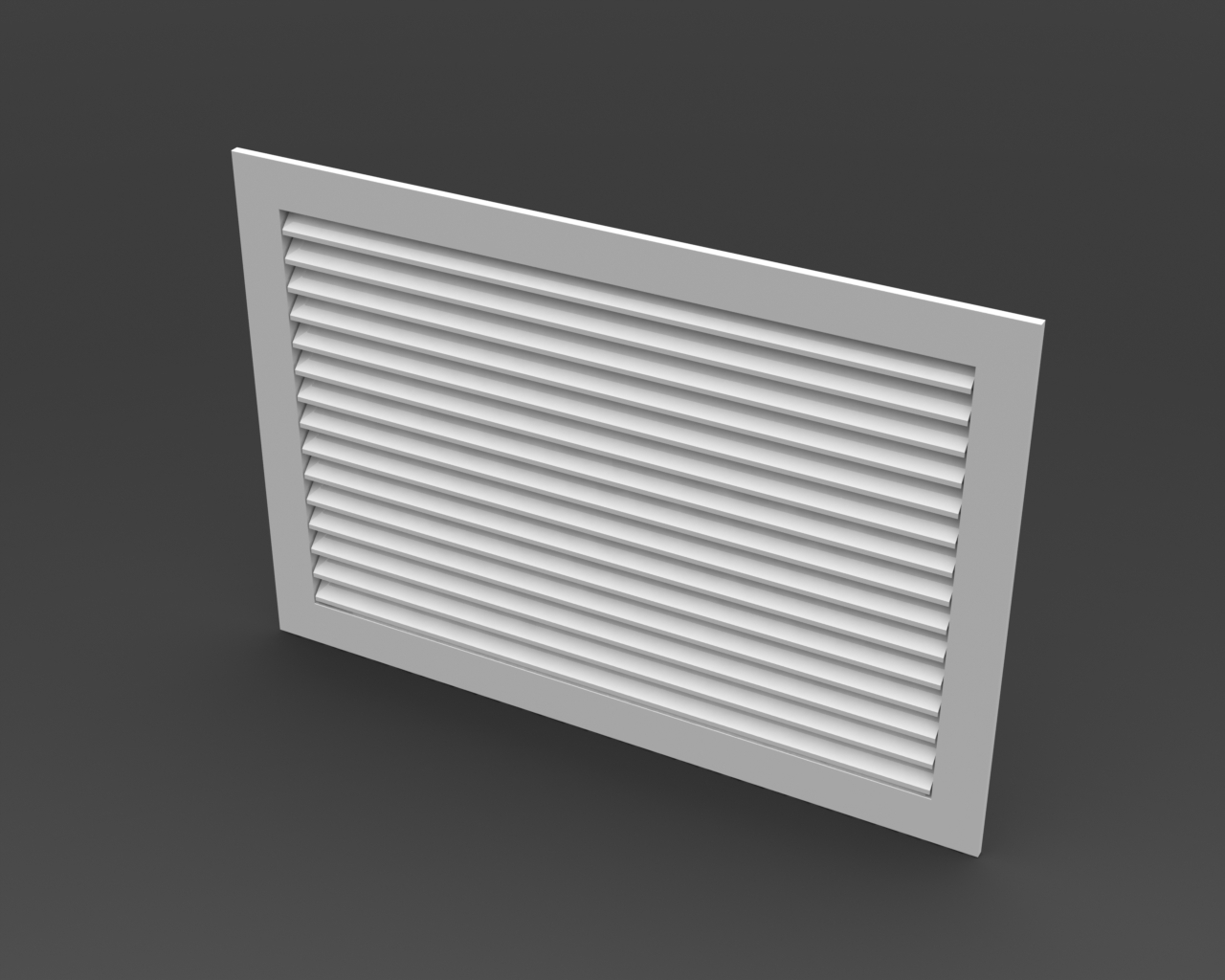

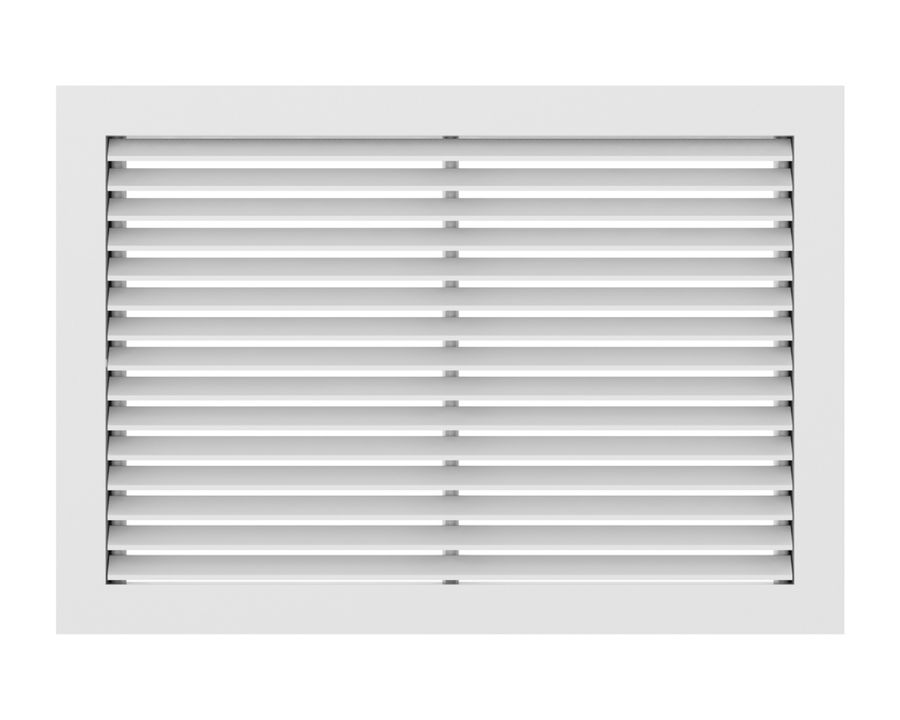

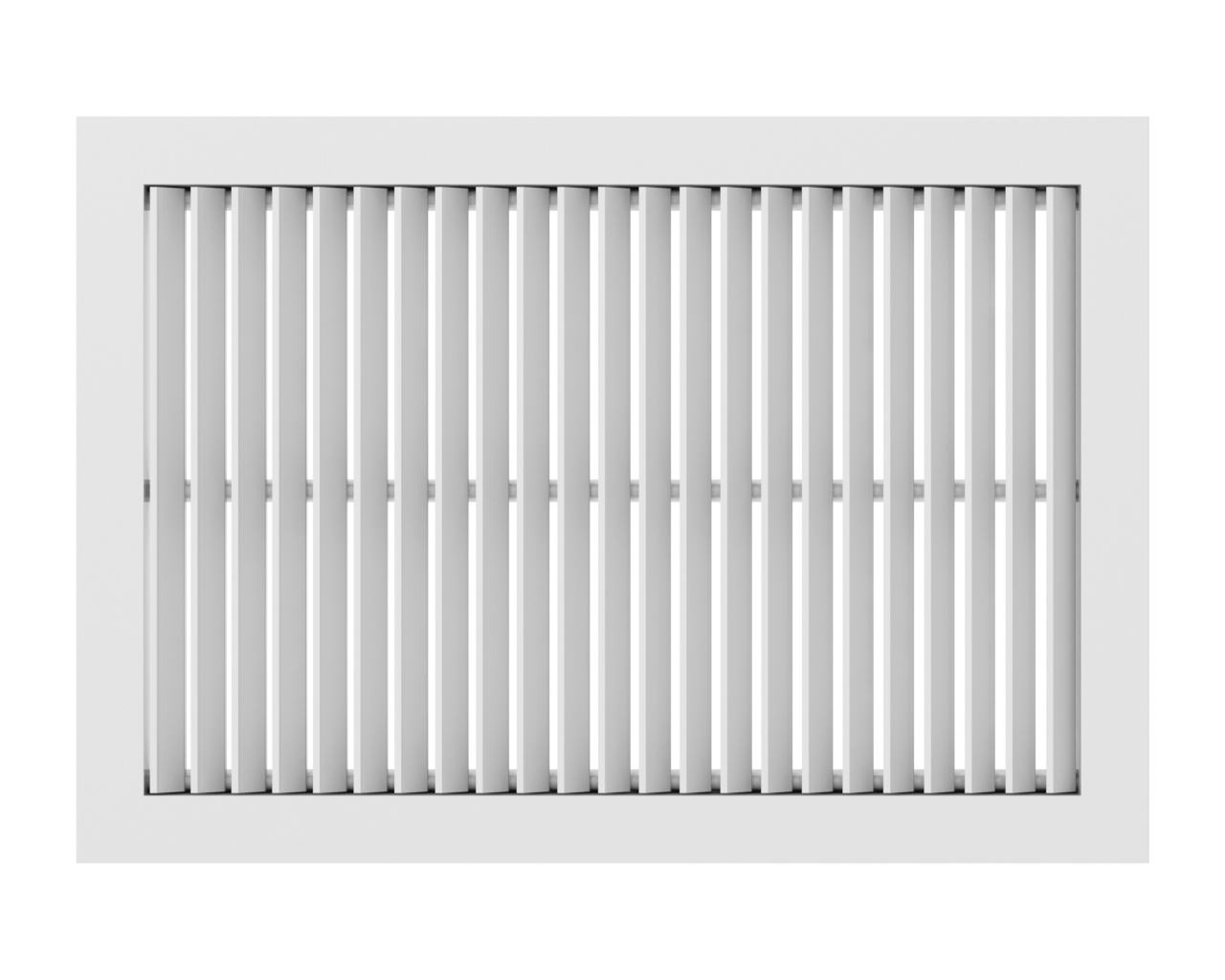

RA204 — Aluminum Fixed Bar Return Grille

How to Specify

Provide the following information:

  • Model Number
  • Color
  • Duct size

RA204 — Aluminum Fixed Bar Return Grille

Assets/Details

Submittal Data (69 KB, PDF)
Engineering Data (658 KB, PDF)
  • Extruded aluminum construction
  • Horizontal bars at 45 degrees
  • Face bars permanently fixed into heavy aluminum frames at a 45-degree angle
  • White finish
  • Available in ¼” increments, oversize options available
  • No longer available in 4” width (6x4 – 48x48 available)
  • Larger than 40x48 shipped in multiple pieces
  • Flat frame option standard, stocked where applicable
  • Damper depth is slightly greater (1/4”), where applicable
  • Also available in special order Z-Frame

Add a “Z” to the beginning of the model number

Available Sizes (inches)

Height
Width68101214161820
6
8
10
12
14
16
18
20
24
25

Obsolete Product

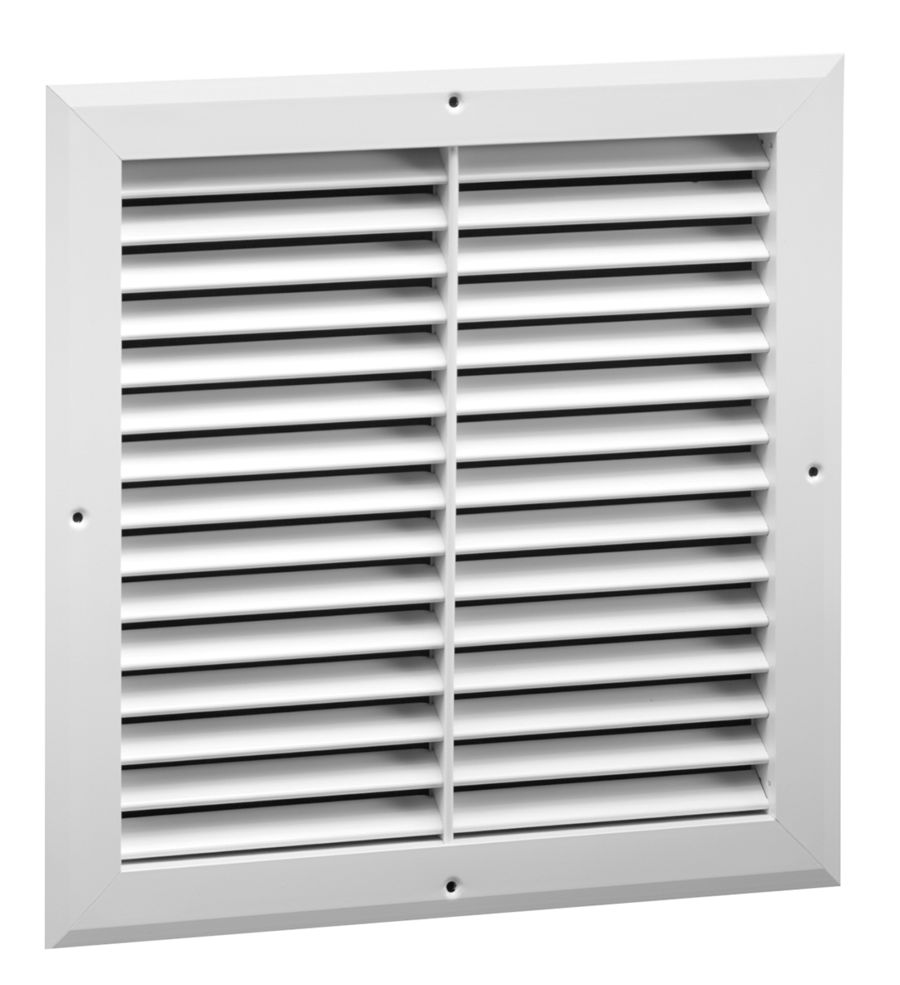

  1. Old RA204 Grille
HC RH45g
  • Extruded aluminum construction
  • Horizontal bars at 45 degrees
  • Face bars permanently fixed into heavy aluminum frames at a 45-degree angle
  • White finish
