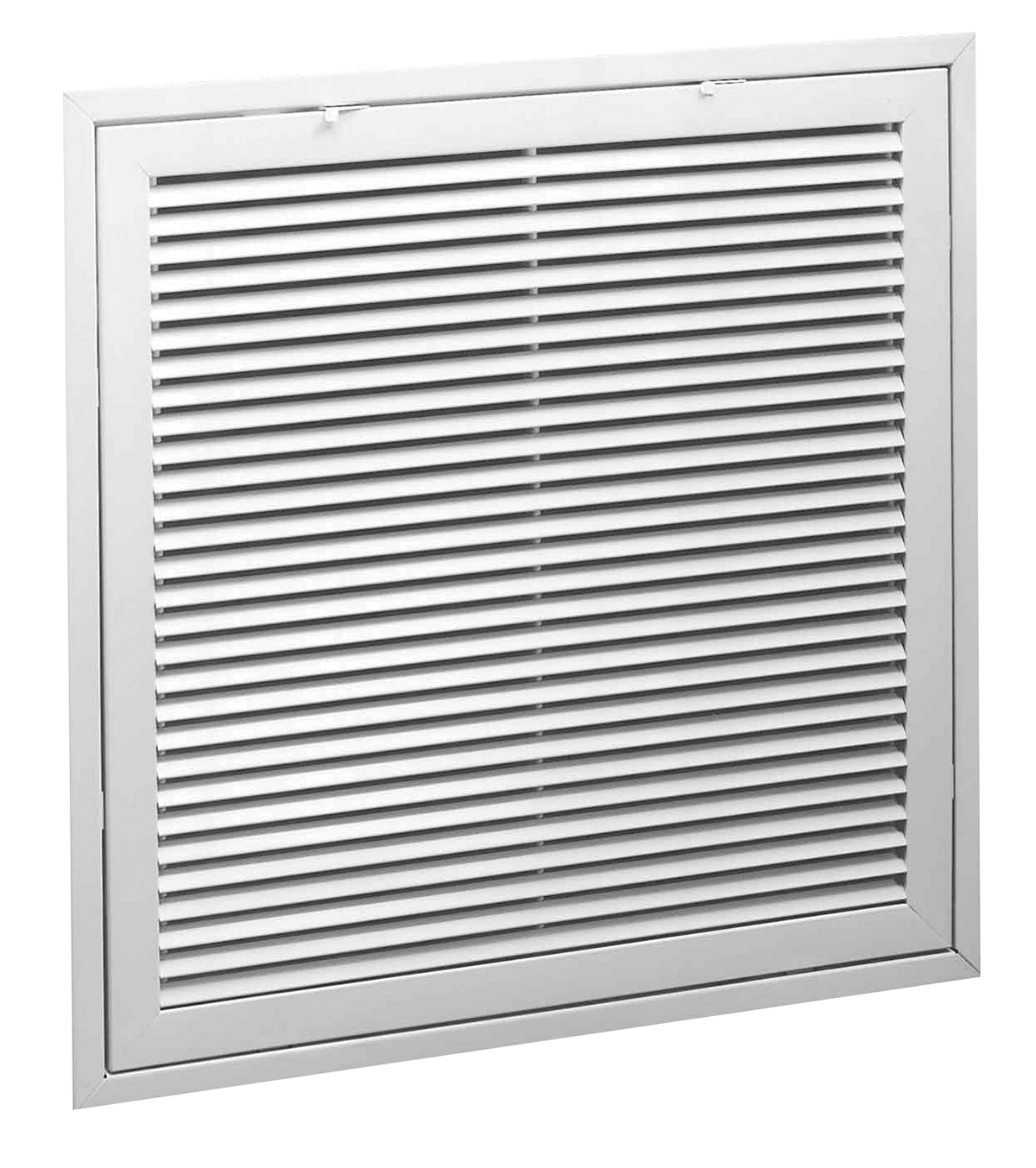

490TIW — Steel Fixed Bar Return Air Filter Grille with Molded Insulation

How to Specify

Provide the following information:

  • Model
  • Finish
  • 20x20

490TIW — Steel Fixed Bar Return Air Filter Grille with Molded Insulation

Assets/Details

Submittal Data (78 KB, PDF)
  • Steel construction
  • Bar-style face design
  • Flush, removable face with concealed latches and hinges, can be installed in any direction
  • R4.2 Molded insulation back
  • Accepts 6' to14" unique tab collar (G5000C Series) or 6" to 18" unique snap-in collar (G6400C series); also accepts standards spin-in collar
  • Frame includes four seismic safety connections
  • Uses standard 1" disposable filters (not furnished)
  • White finish
  • Available sizes: 20" x 20", overall 23 3/4" x 23 3/4"
